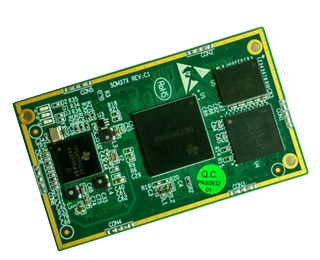

SOM3730

TI DM 3730, ARM Cortex-A8@1GHz, TMS320C64x+™ DSP Core@800MHz

Consultation & Ordering

SOM3730 is a high-performance system on module based on TI DM 3730 designed by EMA.This product is designed to provide best in class ARM and graphics performance while delivering low power consumption,thus SOM3730 is the ideal choice of HD video processing and massive data processing.
  • Hardware
  • Software
  • Document
  • Application

Introduction

With only 30mm*43.7mm in size,SOM3730 is the smallest system on module in China.SOM3730 has integrated some core components on board including TI DM3730 processor,3D graphics accelerator,Power management IC as well as various peripherals signals,which makes it ideal for complex graphics processing.Supporting Linux-2.6.32,Android 2.2 and WinCE6.0 operating system,we offers software resources like BSP and DVSDK for our users.

Hardware Features

  • TI DM3730 processor, ARM® Cortex™-A8@1GHz, NEON SIMD Coprocessor

  • 2D/3D POWER SGX™ Graphics Accelerator

  • 512MB LPDDR/512MB NAND FLASH

  • B2B connector(4x 0.5mm,60pin)

  • 1x OMAP3 GPMC bus, 1x OMAP3 DSS bus

  • 3x 4-line UART(RX,TX,CTS,RTS)

  • 1x HSUSB 2.0 OTG(*2), 2x HSUSB 2.0 ULPI bus(*1)

  • 1x Camera bus, 1x Stereo audio output, 1x Single channel microphone input, 1x Single channel audio input

Consultation & Ordering

FAE

Sales

Contacts

Mr. Ken

Miss Jessy

Call phone

(+86) 159 1576 8027

(+86) 131 1959 1334

E-mail

support@ema-tech.com

sales@ema-tech.com

Message Board
Title:
Message:
E-mail:
Verification:

Software Parametrics:

Linux

Booting Code

Version

x-load-1.5.0 u-boot 2009.11

Boot Mode

Boots from eMMC/SD.

Download Method

Downloads from Internet and Serial Port.

Kernel

Kernel Version

Linux2.6.32

File System Format

EXT3/EXT4/NFS/JFFS2/UBIFS

Device Driver

Led

Led driver

Serial port

Serial port driver

RTC

Hardware clock driver.Can save system time

Ethernet

10/100/1000M Ethernet driver

USB host

USB 2.0 host driver

USB device

USB device driver

LCD

LCD screen driver

Touch Screen

4-line Touch Screen driver

MMC/SD

MMC/SD controller driver

AUDIO INPUT/OUTPUT

Input/Output audio card driver

TCP/IP

Offers complete TCP/IP protocol

Configure System
&Services

Ifconfig ,route

Network configure and related service programme

Basic Tools

Common Commands

cat,chmod,echo,free,init,kill,ls,mkdir,mount,ps,reboot,rm,lsmod,rmmod etc.

WinCE7

BIOS

x-loader

Boots from NAND FLASH/SD

e-boot

Boots from NAND FLASH/SD

OAL

OAL module

REBOOT

Watchdog

RTC

KITL module

RNDIS KITL

Driver Support

Ethernet

Offer driver

Touch Screen

Offer driver

AUDIO INPUT/OUTPUT

Offer driver

MMC/SD

Offer driver

LCD

Offer driver

Serial port

Offer driver

OTG

Offer driver

TCP/IP

Offer driver

Android4.0

Kernel Version

Linux2.6.32

Driver Support

Serial port, RTC, Ethernet, LCD, Touch screen MMC/SD , USB OTG, USB , Audio input/output

Application Areas

SOM437X can be used for medical and industrial areas of embedded application, including networked industrial drive controller, consumer medical apparatus and instruments, HMI industrial man-machine interface, navigation equipment, barcode scanners, portable data terminal, test and measurement, industrial automation and other fields.
  • GPS positioning system
  • Face recognition system
  • Vehicle multimedia system
  • High-end industrial equipment
  • portable equipment
  • Medical equipment
  • Intelligent Home Furnishing system
  • 2D/3D game machine product
