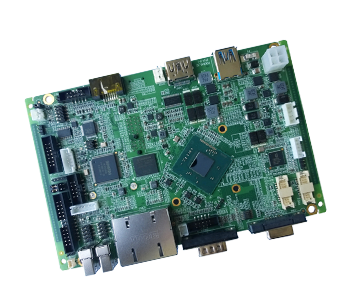

SBC-E3800

With Intel® Atom™ E3800 series SoC,SBC-E3800 has good performance in calculation,image processing and reduced power consumption.Since the booming of the intelligent application industry such as loT,SBC-E3800 is the first choice in the areas of mechanical automation,intelligent transportation,sea transportation and so on because of the advantages of high performance and low consumption.

Consultation & Ordering

Specifications

Hardware parameters
Processor

Intel® Atom™ Processor E3845 Quad-Core (2M Cache, 1.91GHz)

Intel® Atom™ Processor E382x Dual-Core (1M Cache, 1.33~1.75GHz)

Intel® Atom™ Processor E3815 Single-Core (512KiB Cache, 1.46GHz)

(Intel® 64 architecture, Support for IA 32-bit)

Memory

1x 204-pin DDR3L-1066/1333MHz SO-DIMM max. up to 8GByte

Storage

1x eMMC (4/8/16/32GByte)

1x SATA II up to 3Gb/s (Support +5V or +12V)

1x 64Mbit SPI FLASH (For BIOS)

1x TF Card Slot

Expansion Interface

1x Full-Size Mini PCI Express Mini Card w/mSATA supported

1x PCI-E 1X

Display

Graphic Engine: Intel Gen7 HD Graphics, 542/792(Turbo)GFX for E3845

HW Video Decode & Encode

Decode: H.264, MPEG2, MVC, VC-1, WMV9,VP8

Encode: H.264, MPEG2, MVC

1x LVDS

Single-lane 18/24-bit LVDS up to 1280*1024@60Hz

Dual-lane 36/48-bit LVDS up to 1920*1200@60Hz

1x VGA

Up to 2056*1536@60Hz

1x HDMI/DVI

Up to 1920*1080@60Hz

Ethernet

2x 10/100/1000 Mbps RJ-45

Audio

1x Mic-in(Stereo)

1x Line-in(Stereo)

1x Line-out(Stereo)

1x Speaker(8Ω,1W)

1x Buzzer

USB

1x USB Host 3.0 Type A

2x USB Host 2.0 Type A

4x USB Extended Port

Serial

1x 9 Line RS-232 (DB9)

1x 9 Line RS-232 (2.0mm Box Header)

1x RS-232/422/485

Parallel

1x Printer Port

PS/2

1x PS/2

GPIO

8x GPIO

FAN

1x CPU Fan Connector

LED

1x HDD LED

1x Power LED

2x Debug LED

RTC

1x RTC

Button

1x Reset

1x Power

1x Clear CMOS

OS

Windows

Windows 8/8.1

Windows 7

Android

Android 4.4 Kit Kat (64-bit)

Android 4.2 Jelly Bean (32-bit)

Linux

Ubuntu 14.04 or UP
