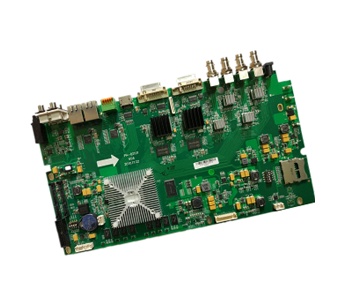

SBC8168

With the advantages of high integration level,low cost,low consumption and full function,SBC8168 is the high-end video acquisition and processing embedded product based on Ti TMS320 DM8168 Davinci digital media processor.

Application Areas

  • Broadcast level video coding and decoding
  • Face recognition system
  • Video analysis and video monitoring and industry DVR
  • Video conference terminal and multipoint control unit (MCU)
  • High-end industrial equipment
  • Medical or industrial video applications
  • Intelligent Home Furnishing system
  • Real time video format conversion

Specifications

Hardware parameters
CUP

TI TMS320DM8168

processor

ARM Cortex-A8 CPU,SGX530 3D Graphics

RAM

支持2GByte DDR3

FLASH

512MByte NAND FLASH

Interface resources

1x HDMI Video output

2x SATA

1x 3.5mm Audio input

4x SDI Video input

2x DVI Video input

2x Ethernet interface

2x USB

1x SD card interface

3x UART

1x LINE INaudio input

1x LINE OUT Audio output

1x RTC

1x Touch button

1x Power indicator lamp

1x 12V power supply interface

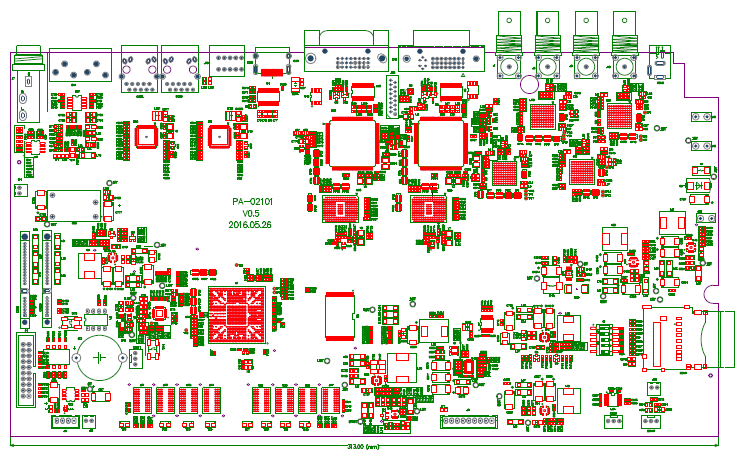

Mechanical structure diagram
