SBC3730

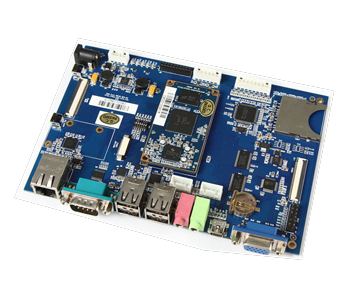

SBC3730 is the evaluation board based on SOM3730.With EPIC standard and extensible architecture,SBC3730 can be connected with SOM3730 through the B2B connection,which realize most of the function of DM3730.SBC3730 can help the customers make full use of DM3730 processor resources and have a comprehensively evaluation on DM3730.

Application Areas

  • GPS positioning system
  • Face recognition system
  • Vehicle multimedia system
  • High-end industrial equipment
  • portable equipment
  • Medical equipment
  • Intelligent Home Furnishing system
  • 2D/3D game machine product

Specifications

Hardware parameters
CUP

TI DM3730

processor

ARM Cortex-A8 CPU@1GHz,Integrate SGX530

RAM

256MByte/512MByte LPDDR

FLASH

256MByte/512MByte/1GByte Nand FLASH

Ethernet

1x 10M/100M High performance Ethernet RJ45 interface

serial port

1x 5 RS232(TX,RX,CTS,RTS,GND)

1x 3.3V 5 UART(TX,RX,CTS,RTS,GND)

USB Host

4x USB 2.0 Host

1x USB 2.0 Host

USB OTG

1x USB 2.0 OTG(Can be used as Device)

JTAG

6x UART @Both support hard flow control and soft flow control,Reuse with other interfaces

audio

1x 14Pin TI standard JTAG

audio

1x 3.5mm Audio output interface

1x Internal audio output interface

1x 3.5mm Microphone input interface

VGA

Standard VGA output interface

AV/S-Video output

Support the following criteria:

NTSC-J, M

PAL-B, D, G, H, I

PAL-MCGMS-A

CGMS-A

Video input

4 channel video input. Maximum support for 4 CVB:

or 1 CVBS、1 YPbPr

or 1 CVBS、1 RGB(Built-in composite synchronous signal)

or 2 CVBS、1 S-Video

or 2 S-Video

CVBS Support for NTSC/PAL/SECAM production

SD slot

MMC/SD/SDIO/SDHC slot, maximum support for 32GByte capacity

Ferroelectric memory (optional)

64Kbit/128Kbit/256Kbit/512Kbit Unlimited write high speed ferroelectric memory

Security is not encrypted (optional)

Built-in hardware encryption and Hardware verification mechanism

RTC

Built-in RTC battery seat, powered by CR1220 battery

Button

1x Programmable user interrupt button

1x RESET Button

LED Indicator light

3x Power indicator lamp

2x Programmable indicator lamp

Start mode selection switch

1x 6 Bit start mode selection switch code switch

Power interface

1x 5V 2A DC Power interface

1x 5V 2A Internal power supply interface

Extension interface

1x 3.3V LCD Module interface(Support touch)

1x 1.8V WIFI Module interface

1x 1.8V GPIO Extension interface

1x 1.8V GPMC High speed bus interface
