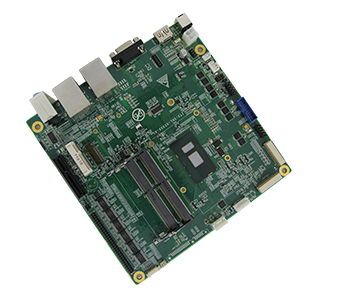

ITX-SKL

Based on Intel® Celeron 3855U and Core™ i5-6200U processor,ITX-SKL series motherboard is the fully functional motherboard designed by EMA.The motherboard is compatible with Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low consumption processor.

Consultation & Ordering

Application Areas

  • Recreational Machines Main Control Board
  • Industrial Computer
  • POS
  • Monitor
  • Family And Building Automation
  • Intelligent Electronic Toll Collect

Specifications

Hardware parameters
Model

ITX-SKL

Explain

Operating System

Windows 7 / Windows 10 /Linux

/

CPU

Intel® Celeron® Processor 3855U/3955U

Integrate Intel® Celeron® Processor 3855U

1.6GHz Dual Core Processor,TDP15W,

Compatible Intel® SKYLAKE-U

Pentium/Celeron/I3/I5/I7 Low power processor

Intel Skylake I3-6100U/I5-6200U/I7-6500U

RAM

2* SODIMM DDR4 slot

Support dual channel 2133\2400MHz DDR4,

Maximum support for 16GB

display

1*VGA

The highest resolution of support is: 1920X1200@60Hz

1*HDMI1.4

The highest resolution of support is: 4096X2304@24Hz

1*EDP

The highest resolution of support is: 4096X2304@24Hz

1*Support dual channel 24bit LVDS interface

The highest resolution of support is: 4096X2304@24Hz

touch

1* capacitance touch USB plate inner pin seat

Support 4/5 resistance screen, multi touch capacitance screen

network Port

Provide 2 GigE ports

2 RTL8111FGigE card chips,

Support network wake-up /PXE

storage

1个SATA3.0 Hard disk interface

The transmission rate is up to 6Gbps

1*MSATA slot

SSD solid state hard disk supporting Intel protocol,

The transmission speed is up to 6Gbps

1*M.2 slot

Support 2242/2280 Size specification standard

Audio

1*audio Interface,@MIC、Line_out,Line_in

Integrate ALC662 ,6 channel high fidelity audio controller

Expansion slot

1*PCE-E slot

PCIE X4 slot supporting standard desktop

1*Mini PCIE slot

Support WIFI, 3G module

RTC

1*RTC battery socket

/

Internal interface

2*USB2.0

Pin seat in the plate

2*USB3.0

Pin seat in the plate

1*Network port

Pin seat in the plate,

LED display with state (bright, extinguish, flicker)

6*COM(RS232 )

Pin seat in the plate

1*PS/2

Pin seat in the plate

1*RS232+RS485

Merge into a pin seat in the plate

1*Power amplifier horn interface

Support 4 ohm 3W horn

1* Front panel function button and indicator lamp interface

/

2*SATA +SATA power supply

1 22pin integrated power supply SATA interface,

1*4 pin SATA power sources (12V 5V)

Fan interface

1* 4pin CPU intelligent fan interface,

1*3pin System fan interface

/

BIOS

64Mb FLASH ROM

/

Rear panel external interface

2*USB2.0

/

2*USB3.0

2*RJ45 (Glan-1、Glan-2)

1*HDMI

1*VGA

1*Audio(3-ch)

Power interface

1*Power interface(12V=19V)

The power supply voltage is modified to 12V fixed voltage

1*4PIN 3.96mm Inner socket

ATX power 4PIN

Switch interface

1* power switch interface

Pin seat in the plate

Indicator light

Hardware state LED lamp

Turn on, S3 flicker, S4/S5 extinguish

Software debugging LED lights

One of 8 software controlled GPIO to do bypass control LED,

Display the GPIO state

PCBSize

170mmx170mm

/

weight

TBD

/

Power Waste

TBD

/

working temperature

-10℃~60℃

/

Storage Temperature

-20℃~70℃

/

Working Humidity

5%-95% relative humidity, no condensation

/
