HMI335x

TI AM 335x, ARM Cortex™-A8 CPU@1GHz, NEON™ SIMD Coprocessor

Consultation & Ordering

Integrated the core components of TI AM335x,HMI335x is the high-performance single board computer based on SOM335x.In addition to those main functions provided by the SOM335x, HMI335x single board computer has extended more functions through the peripherals interfaces on board, which makes the board versatile for various industrial applications.Through the 2.00mm, 60pin
expansion connectors,HMI335x has rich peripherals resources including McSPI,MDIO,GPMC,PWM.
Based on HMI335x,you just need to focus on the core application software to speed up your development.
  • Hardware
  • Contents
  • Software
  • Document
  • Application

Introduction

The SOM335x has integrated the TI AM335x processor, up to 2G DDR3 , 4Gbit NAND Flash and 3D graphics accelerator on board and can be served as the core of your embedded system.SOM335x offers rich peripheral resources like USB2.0 HOST,USB2.0 OTG,CAN bus,six UART serial ports and so on,thus makes it ideal for speeding up your development.

Carrier Board Features

  • B2B connectors

  • Expansion connectors(2.00mm, 60pin)

  • 128MB-512MB DDR3

  • 4GB-32GB eMMC Flash /256MB-2GB NAND Flash

  • EMC/EMI test 9-24V wide voltage input

  • 1x Gigabit Ethernet port, 1x CAN, 1x RS485, 3x RS232, 2x USB 2.0 Host

  • 2x McSPI, 1x MDIO, 1x GPMC

  • 1x industrial WIFI

  • 1x Camera interface(500M pixel)

Consultation & Ordering

FAE

Sales

Contacts

Mr. Ken

Miss Jessy

Call phone

(+86) 159 1576 8027

(+86) 131 1959 1334

E-mail

support@ema-tech.com

sales@ema-tech.com

Message Board
Title:
Message:
E-mail:
Verification:
In addition to those main functions provided by the SOM335x, HMI335x development kit has extended more functions through the peripherals interfaces on board, which makes the board versatile for various industrial applications.

Kit Contents

Optional Contents

SOM3354-A3-29002-w system on module

SOM335x in different specifications(Including different CPU,FLASH and Memory)

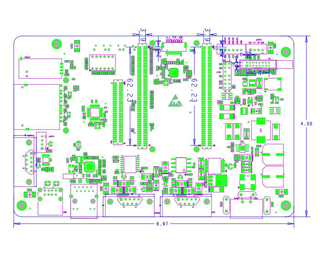

HMI335x carrier board

WIFI module

DVD(Including user manual,development tools,BSP source code,PDF schematic diagram)

LCD touch screen

3.3.V TTL UART-RS232 module

HMI335X expansion board(Based on your requirement)

Carrier board features

  • B2B connectors

  • Expansion connectors(2.00mm, 60pin)

  • 128MB-512MB DDR3

  • 4GB-32GB eMMC Flash /256MB-2GB NAND Flash

  • EMC/EMI test 9-24V wide voltage input

  • 1x Gigabit Ethernet port, 1x CAN, 1x RS485, 3x RS232, 2x USB 2.0 Host

  • 2x McSPI, 1x MDIO, 1x GPMC

  • 1x industrial WIFI

  • 1x Camera interface(500M pixel)

Software Parametrics:

Linux

SPI

Version

u-boot 2011.9

Boot Mode

Boots from eMMC/SD.

Download Method

Downloads from Internet and Serial Port.

Kernel

Kernel Version

Linux3.2

File System Format

EXT3/EXT4/NFS/JFFS2/UBIFS

Device Driver

Led

Led driver

Serial port

Serial port driver

RTC

Hardware clock driver.Can save system time

Ethernet

10/100/1000M Ethernet driver

USB host

USB 2.0 host driver

OTG

USB 2.0 OTG driver

LCD

LCD screen driver

Touch Screen

4-line Touch Screen driver

MMC/SD

MMC/SD controller driver

I2C

I2C bus driver

GPMC

GPMC bus driver

CAN

CAN bus driver

McSPI

McSPI bus driver

eMMC

eMMC driver

EEPROM

I2C EEPROM driver

AUDIO INPUT/OUTPUT

Input/Output audio card driver

TCP/IP

Offers complete TCP/IP protocol

Configure System
&Services

Ifconfig ,route

Network configure and related service programme

Basic Tools

Common Commands

cat,chmod,echo,free,init,kill,ls,mkdir,mount,ps,reboot,rm,lsmod,rmmod etc.

WinCE7

BIOS

x-loader

Boots from SD

e-boot

Boots from SD

OAL

Boot parameter

KILT(EMAC)

Serial debug

REBOOT

Watchdog

RTC

Kernel profiler

System timer

Interrupt controller

MMU

Device Driver

Debug serial port, RTC, Ethernet, NAND Flash, LCD, Touch screen, SD card, USB Device, USB host, Audio input/output, RS485, NLED, Keypad

Android4.0

Kernel Version

Linux3.2

Driver Support

Serial port, RTC, Ethernet, LCD, Touch screen MMC/SD , USB OTG, USB , Audio input/output

Application Areas

SOM335x can be used in different areas including industrial human-machine interface, Consumptive medical instruments, Industrial control equipment , Industrial communication gateway, Family and building automation, machine vision, Intelligent Electronic Toll Collect, Recreational machines main control board and other areas.
  • Human Machine Interface
  • Consumptive medical instruments
  • Industrial control equipment
  • Industrial communication gateway
  • Family and building automation
  • machine vision
  • Intelligent Electronic Toll Collect
  • Recreational machines main control board
