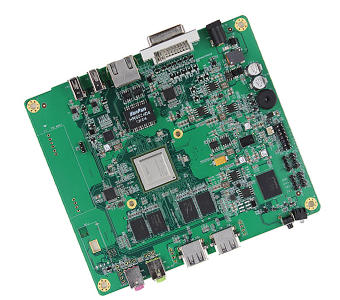

CT8148

Based on TI DaVinci multimedia processor DM8148,CT8148 is the high performance industrial grade single board computer .With Citrix XenDesktop virtual desktop solution and Citrix HDX technology,CT8148 give the end-users a outstanding using experience and professional cloud services support.

Application Areas

  • Bank self-service terminal
  • Medical device display system
  • Face recognition
  • Traffic management query system
  • Paperless office thin client
  • Embedded advertising machine
  • Intelligent Home Furnishing system
  • GPS positioning system

Specifications

Hardware parameters
CUP

TI DM8148

processor

ARM Cortex-A8 CPU@1GHz,POWERVR SG2D/3D Graphics

RAM

支持1GByte DDR3

FLASH

4MByte SPI FLASH

4GByte eMMC

Display Resolution

Single: 1920X1200 @ 30fps

Dual: 1280X1024 @ 24fp

Display Data Control

High performance GPU integrated, 3D graphics engine

I/O Physical Video

1 x DVI-I

Audio

1 x 3.5mm Stereo audio phone jack

1 x Built-in stereo audio phone jack

UART

4 x 3.3V TTL UART ( 4 Lines )

USB

4 x USB 2.0,1 x USB OTG ( pin-socket )

Network LAN

1 x 10/100/1000M Ethernet , RJ45 , Support WOL

WLAN

1 x USB WIFI module interface ( pin-socket )

Encrypt

1 x I2C Interface Encrypt Module

RTC

1 x RTC battery socket

Button

1 x Power Button

1 x Reset Button

1 x Revert Button

LED

1 x Power indicator

Power

1 x 5V 2A DC power connector

Bootmod slect

Jumper

Buzzer

1 x Boot indicator Buzzer

Dimension

150mm(L) x 133mm(W)

Temperature Operation

0°to 70°C

Storage

-40°to 85°C
